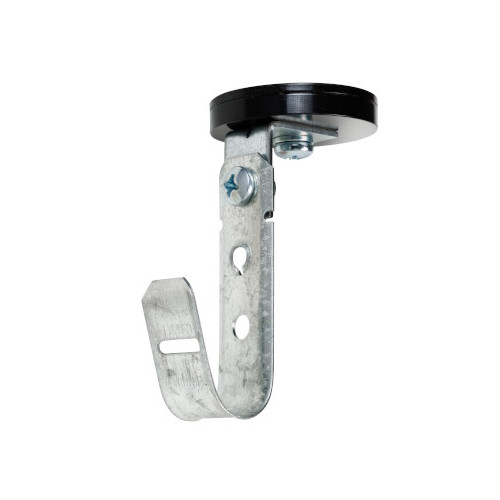

150lb. Magnetic J Hook for Overhead Mounting Exceptionally Strong

150lb. Magnetic J Hook for Overhead Mounting Exceptionally Strong

Extremely strong, fast, and cost-effective cable management solution for mounting on thin metal

Features:

• Permanent nine-pole charged rare earth neodymium magnet
• Exceptionally strong when compared to conventional neodymium pot magnets
• Vertical pull force up to 150 lb on sheet metal
• Due to the intense magnetic attraction at the surface, will not easily slide like other magnets
• Sticks through oil, grease and dirty areas
• Magnet’s black epoxy coating provides corrosion resistance
• J Hook is crafted from heavy-duty pre-galvanized steel
• Smooth rounded edges for the proper bend radius of cables
• For all types of category cable, low-voltage wire, coax, innerduct and flexible conduit & tubing
• Provides excellent support for CAT5e, CAT6, CAT6A, CAT7 and fiber optic cables
• Includes wire cable retainer clip
• Complies with NEC® and TIA/EIA requirements for structured cabling systems

Application:

• Provides support in the distribution of wire and cable bundles
  • Telcom/Voice
  • Network/Data
  • Fiber
  • Broadband, Satellite, CCTV
  • Low Voltage/Security
  • Flexible Conduit

Installation:

• Secures to steel beams, ceiling decks, sheet metal, metal joists, van walls & other ferromagnetic surfaces
• Engineered for max attachment to thin metal

Cable Capacity:

• 80 Cat5e cables
• 50 Cat6 cables
• 34 Cat6A cables
• 26 Cat7 cables
• 80 Fiber optic cables

Magnet Specifications:

• Size: 2” x 3/8” (50.8mm x 9.5mm)
• Threaded Hole: ¼ x 20
• Vertical Pull Force: 150 lb
• Coating: Epoxy
• Material: Magnet: Neodymium (NdFeB); Fender Washer: Steel
• Temperature Tolerance: -40°F – 176°F (-40°C – 80°C)

Safety:

• Please handle neodymium magnets with care
• Keep neodymium magnets away from anyone with a pacemaker
• Magnets are not toys and should be kept away from children and pets
• Large powerful magnets can pinch your fingers or cause other injuries, use caution
