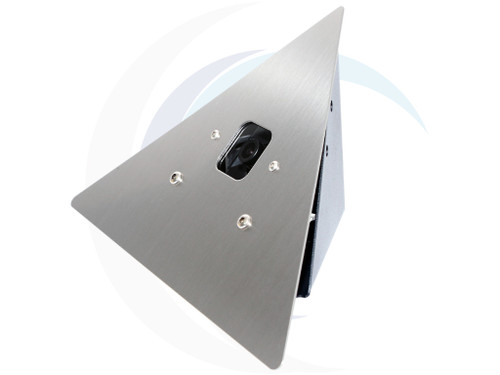

2.4MP 4-In-1 HD Corner Hidden Camera - 059-CM2M8028

2.4MP 4-In-1 HD Corner Hidden Camera - 059-CM2M8028

Features:

• 4-In-1 (AHD, HD-TVI, HD-CVI, 960H)
• 1/2.7" 2.4MP Aptina Sensor
• Effective Pixels: 1920(H) x 1080(V)
• 2.8mm Fixed Lens
• 0.01Lux IR LED On
• 0.01Lux @ F1.2 (AGC On)
• 30FPS (NTSC)
• 12V DC
• OSD Menu. Can Switch to Analog Mode
• CoC Compatible (Control Over Coax)
• FLC / BLC (E Model)
• NTSC / PAL Compatible

Specifications:

• CAMERA
• Image Sensor 1/2.7" 2.4MP HD Aptina Sensor
• Effective Pixels 1920 (H) x 1080 (V)
• Electronic Shutter AUTO: 1/50-1/100, 000Sec (PAL) & 1/60-1/100,000Sec (NTSC)
• Mini. Illumination 0.01Lux(0Lux IR on)
• S/N Ratio ≥48dB
• Video Output Composite Signal (1.0Vp-p, 75Ω), Compatible with AHD, HD-TVI, HD-CVI, 960H
• Video Frame Rate 30fps @ 1080P
• CAMERA FEATURES
• AGC AUTO
• IR LEDs N/A
• IR LEDs Distance N/A
• Day / Night Auto (ICR) / B&W / Color
• Noise Reduction 2D DNR
• BLC Automatic / manual
• White Balance Auto adaptive(Range 2200～10000K)
• WDR N/A
• OSD Menu via Coaxial Cable (CoC), Compatible with Analog Mode
• LENS
• Focal Lens 3.7mm Fixed Lens
• RECORDING
• Encode CBR
• GENERAL
• Power Supply DC 12V ± 10%
• Power Consumption 500mA
• Working Environment -22ºF ~ 140ºF (-30°C ~ 60°C)
• Protection N/A, Indoor Only
• Dimensions 3.7" x 3.2" x 3.2" (95 x 80 x 80mm)
• Weight 1.28lbs (0.58KG)
