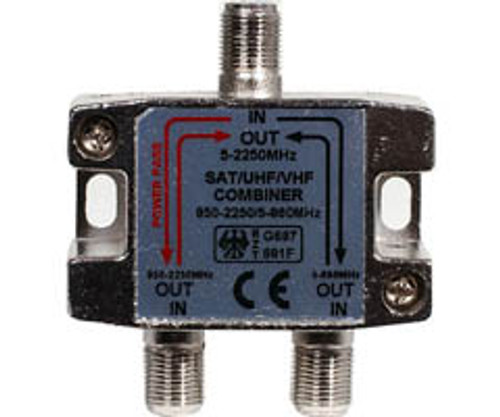

2GHz TV Satellite Mini Diplexer

Satellite Diplexer / Mixers can combine a cable carrying VHF/UHF signals (from an antenna or CATV) with the cable from the satellite dish, or split a cable carrying both types of signals into their separate components. Looks and connects just like a regular splitter/combiner, but works with DSS signals!

5-2050MHz Satellite splitter-combiner. Seperates or combines off-air TV-antenna and satellite signals from or onto a single feed-line. High performance printed-board ciruitry. Anti-corrosion chromate zinc-alloy die-cast housing. 90dB min RFI shielding - epoxy sealed back-cover. 1/2" precision machined F-connector threads. DC pass-through current 500mA max. Insertion loss VHF-UHF 0.5dB - Satellite 1.5dB. Isolation VHF 25dB - UHF 20dB - Satellite 23dB. Return loss VHF 18dB - UHF 10dB - Satellite 12dB.
