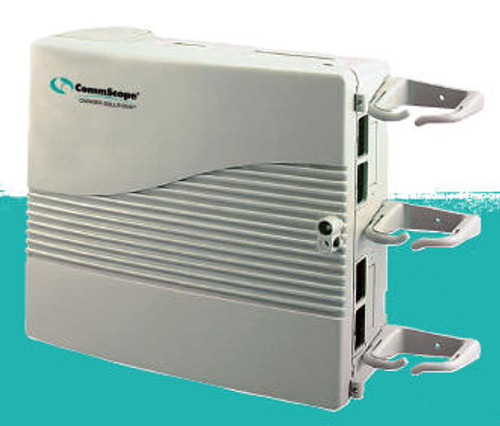

489ACA1-100 Building Entrance Protector 100 Pair 110/110

489ACA1-100 Building Entrance Protector 100 Pair 110/110

These are great units get them now while you still can.

489A (110 Connector) and 489B (66 Block) Protectors

Avaya’s 489 A and 489 B protectors are designed for use wherever outside plant (OSP) cables enter the building. The unit provides over-voltage protection between cables and sensitive electrical devices.

The terminal weighs 30 percent less than the comparable 189 or 188. A wide range of convenient, interchangeable, UL® Listed or Rural Electrification Administration (REA) approved plug-in protector units provide the necessary voltage protection. Hinged, lockable covers are standard and provide additional mechanical protection and security.

Available in 25-, 50-, 100-, and 200-pair sizes, the 489A & B Protector offers two output options:

• The 489A features 110-Type connecting blocks.
• The 489B uses the 66-Type connecting block.

The 489A & B Building Entrance Protector features a generous splice chamber with cable pass-through. Removable grommets allow easy cable placing and splicing when the terminals are stacked. Outside plant cable is terminated on one of two input options:

• For smaller pair counts (<300 pairs), the OSP cable can be terminated in the splice chamber with a 110-Block (489A version), 66-Block (489B version), 710 or 3M splice connector.
• In the splice chamber, a No. 6 ground strap, with eyelet for connection to the shield of the OSP cable, is connected to the protector grounding network.
• For larger installations a 25’ swivel stub provides the ability to splice at an adjacent location.

Features and Benefits

Lightweight
Terminal weighs 30 percent less than comparable models.

Side Exits
Additional side exits and common trough (489A version) facilitate dressing and tracing of customer wire.

Common positive grounding
Two built-in three-wire ground connectors facilitate termination of ground wire and strapping of adjacent protectors.

Unique Internal Wiring
Input/output wire separator prevents protector bypass in high-current conditions.

New 200-pair size
Uses the multi-layer version of the 489-Type plastic housing and has same "footprint" as the 100-pair size.

Optimize safety
The 489 A & B protector panel terminals are gold-plated for superior connections and accept interchangeable, 5-pin type plug-in protector units for greater flexibility.

Minimize wall space
The modular 489 chassis can be mounted directly on top of other 489s so the units are easily "stackable," minimizing wall space and simplifying installation. Cable pass-through features allow for a compact installation and natural mechanical protection for the cable. Multiple 3-wire ground connectors facilitate termination of a No. 6 ground wire, and strapping adjacent units together provides common positive grounding.

489ACA1-025 110 Connector 110 Connector 25 12.4x15.1x5.3 107 894 909489ACA1-050 110 Connector 110 Connector 50 12.4x15.1x5.3 107 894 917489ACA1-100 110 Connector 110 Connector 100 12.4x15.1x5.3 107 894 925489ACC1-025 Swivel Stub 110 Connector 25 12.4x15.1x5.3 107 894 941489ACC1-050 Swivel Stub 110 Connector 50 12.4x15.1x5.3 107 894 958489ACC1-100 Swivel Stub 110 Connector 100 12.4x15.1x5.3 107 894 966489ACM1-025 3M Connector 110 Connector 25 12.4x15.1x5.3 107 894 974489ACM1-050 3M Connector 110 Connector 50 12.4x15.1x5.3 107 894 982489ACM1-100 3M Connector 110 Connector 100 12.4x15.1x5.3 107 894 990489ACM1-200 3M Connector 110 Connector 200 12.4x15.1x8.2 107 895 005489ACS1-025 710 Connector 110 Connector 25 12.4x15.1x5.3 107 895 039489ACS1-050 710 Connector 110 Connector 50 12.4x15.1x5.3 107 895 047489ACS1-100 710 Connector 110 Connector 100 12.4x15.1x5.3 107 895 070489ACS1-200 710 Connector 110 Connector 200 12.4x15.1x8.2 107 895 088489B-Type Input Output Pair Size Dimensions489BCB1-025 66 Block 66 Block 25 12.4x15.1x5.3 107 895 096489BCB1-050 66 Block 66 Block 50 12.4x15.1x5.3 107 895 104489BCB1-100 66 Block 66 Block 100 12.4x15.1x5.3 107 895 112489BCC1-025 Swivel Stub 66 Block 25 12.4x15.1x5.3 107 895 138489BCC1-050 Swivel Stub 66 Block 50 12.4x15.1x5.3 107 895 146489BCC1-100 Swivel Stub 66 Block 100 12.4x15.1x5.3 107 895 153489BCM1-025 3M Connector 66 Block 25 12.4x15.1x5.3 107 895 161489BCM1-050 3M Connector 66 Block 50 12.4x15.1x5.3 107 895 179489BCM1-100 3M Connector 66 Block 100 12.4x15.1x5.3 107 895 187489BCM1-200 3M Connector 66 Block 200 12.4x15.1x8.2 107 895 195489BCS1-025 710 Connector 66 Block 25 12.4x15.1x5.3 107 895 203489BCS1-050 710 Connector 66 Block 50 12.4x15.1x5.3 107 895 211489BCS1-100 710 Connector 66 Block 100 12.4x15.1x5.3 107 895 229489BCS1-200 710 Connector 66 Block 200 12.4x15.1x8.2 107 895 237
