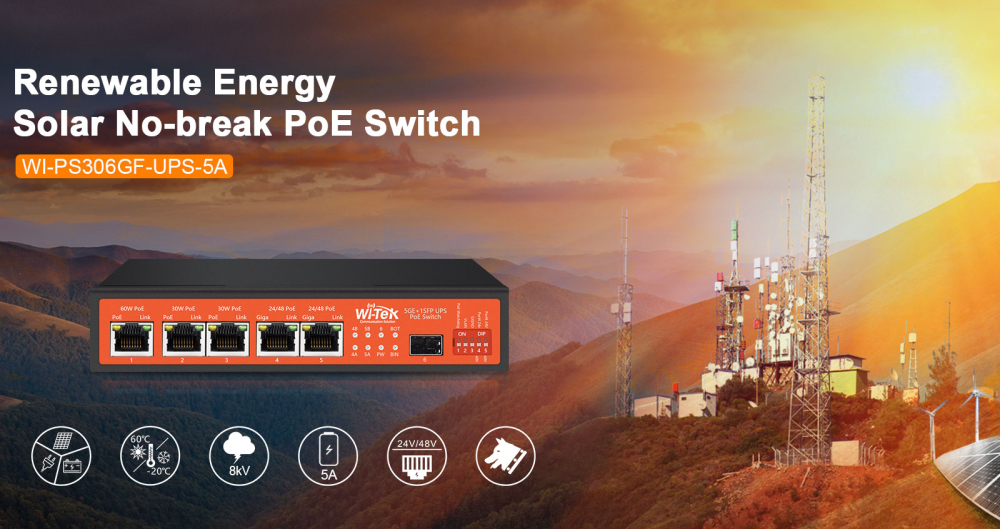

5 Port POE Switch 5A Battery Solar Direct Power 10 Hours at 50AH

5 Port POE Switch Battery Solar Direct Power 10 Hours at 50AH

Please call for quanity discounts

This unique switch can be powered directly with a solar panel during the day (see MPPT) and then by a battery during the night hours.  This combination allows for the system to be completely green, with no connection to the grid.
The switch can also have the grid as the back up power source as well.

Complete Features

• Built-in MPPT (Maximum Power Point Tracking) Charge Controller)
• Zero-Carbon and Stable Power Supply
• Battery Status Monitoring and LED Indicator
• 5 Amp Solar and Battery Controller
• User-friendly Secure Remote Management
• Layer 2 Management Functions
• 5 10/100/1000Mbps RJ45 Ports 1 1000Mbps SFP Slot
• POE Ports:
  • Port 1: 802.3bt PoE 60W 1/2/4/5 (+)3/6/7/8 (-)
  • Port 2-3: 802.3af/at PoE 1/2(+), 3/6(-)
  • Port 4-5: 802.3af/at PoE 1/2(+), 3/6(-) or Passive 24V PoE 24W 4/5(+), 7/8(-)
• Power Consumption: 120W (max. with PoE device connected) 5W Max (without PoE output)
• Power Supply: For 12V Battery: DC 15-26V For 24V Battery: DC 30-36V
• Solar Controller Input: ≤32V(12V standard) ≤45V(24V standard)300W Max
• Package Contents: 1 x PoE Switch 1 x 24V 5A Power Adapter 1 x Power Cord 1 x Quick Installation Guide
• l2: Functions: Spanning Tree, Port Control, Security, QOS, L2 Multicast, IPv6, Web Management GUI
• PS306GF-UPS V3
