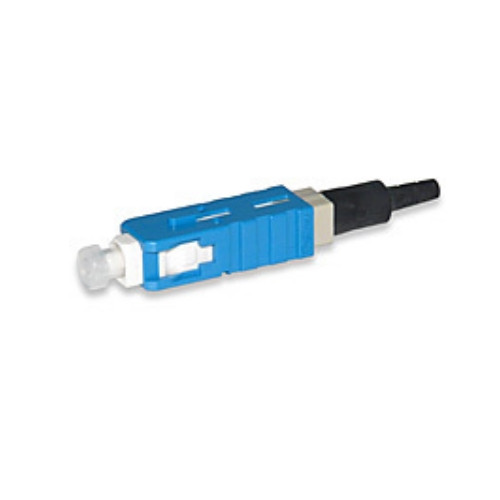

AFL FAST-SCSM-6 SC SM Fiber Optic Connector 6 Pack

AFL FAST-SCSM-6 SC SM Fiber Optic Connector 6 Pack

FASTConnect are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

FAST Connectors are compatible with 250 μm and 900 μm optical fibers, as well as 900 μm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry standard requirements to aide in identification during and after installation.

A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

Features

• No Epoxy, No Polish
• Low Insertion Loss
• Fiber Can Be Reinserted up to Three Times
• 3.0 mm, 2.0 mm and 900 μm Cordage Compatibility
• VFI Accessory to Confirm Proper Installation
