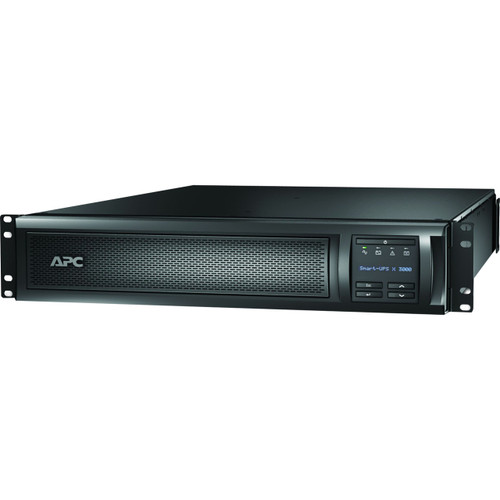

APC Smart-UPS SMX3000RMLV2U 3000 VA Rack Mountable UPS

APC Smart-UPS SMX3000RMLV2U 3000 VA Rack Mountable UPS

2U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R

Note the plug configurations of this unit.

Technical Information

Plug/Connector Type:   NEMA L5-30P
Receptacles:   3 x NEMA 5-15R
Receptacles:   3 x NEMA 5-20R
Receptacles:   1 x NEMA L5-30R
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description

Load Capacity:   3000 VA/2700 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
Total Number of Expansion Slots:   1

Battery Information

Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6 Minute
Backup/Run Time (Half Load):   18 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.3"
Width:   17"
Depth:   26.3"
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   84.77 lb

Miscellaneous

Package Contents:

• Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
• CD with Software
• Documentation CD
• Installation Guide
• Rack Mounting Brackets
• Rack Mounting Hardware
• Rack Mounting Support Rails
• Removable Support Feet
• Smart UPS Signaling RS-232 Cable
• USB Cable
