Avaya 310 and 310M Central Office Protectors

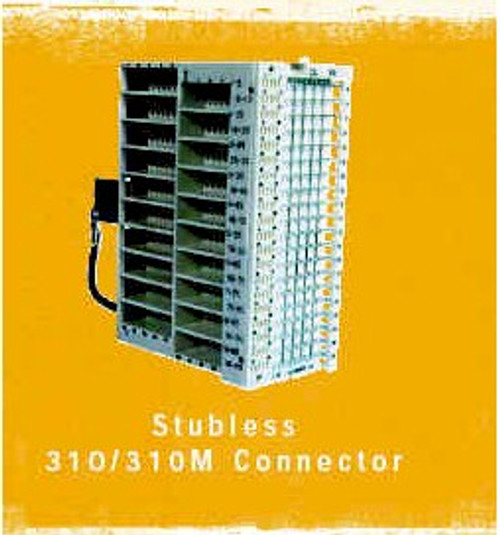

The 310/310M-Type Connector is a high-density connector used to terminate outside plant cables on low - profile or tall conventional distribution frames.  The connector is easy to install and extends only 7 inches from the vertical frame on which it is mounted.  For added convenience, the enhanced 310M-Type connector offers a new angled mounting option, extending at a 12.5 degree angle from the face of the vertical frame mounting bar.  This provides "semi" front-facing test, cross-connect and protector unit fields, which facilitate testing, jumper terminating as well as protector unit administration.

The left face of the connector has room for 100 3-, 4- or 7-Type Protector Units, arranged in two 5 by 10 arrays. The protector units must be ordered separately. When installed, the connector is only 9 3/8 inches high and 4 inches wide — with 4- or 7- Type protector units installed. Occupying half the vertical space of the 303-Type Connector, this compact design allows you to increase the frame density on conventional distributing frames currently using 303 or earlier designed connectors.

PDF Specification Sheet
