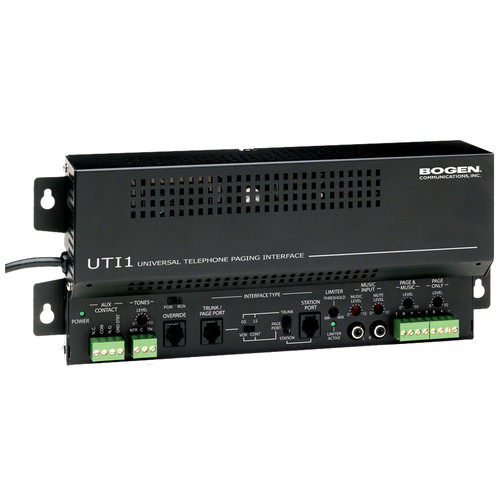

Bogen UTI1 Single-Zone Universal Telephone Interface
*NOTE* The TAMB2/PS is now EOS. The UTI1 is a great substitute for 95% of use cases. See the documentation section below for a full feature comparison guide.
Bogen’s UTI1 is a single-zone telephone interface that is compatible with all standard analog port types. A background music (BGM) input with variable muting coordinates music and page announcements. An additional audio output provides a “page only” function (no BGM) for application flexibility. A built-in 24V DC, 1A power supply is provided for powering amplified speakers. Paging volume controls are provided for each of the outputs. Contact-triggered tones and night ring signals, as well as programmable AUX relay contacts, are all programmed using DTMF tones through the dual-purpose override input.
- Emergency override and general paging
- Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports (with or without contact closure activation)
- Background music (BGM) input with level control and variable muting
- Separate Page and BGM and Page Only
- Level control for each output
- 24V DC, 1A power supply
- 150 Speaker T/R drive capacity per output
- Page level limiter with active indicator
- Override input (loop start or page port)
- Programmable timeout for station
- Tone burst (2 to 7 sec), chime, and whoop tone selections
- Micro-controller operated, DTMF programmable
- Night ring tone or chime selection
- Programming through override
- Wall-mount design
- FCC Part 68 Registered
- Listed to UL Standard 60950 for U.S. and Canada
