Core Bore Firestop and Seal System for Concrete Floors
- Brand
- New Tech Industries
- SKU:
- Core Bore Seal
- Condition:
- New
- Shipping:
- Calculated at Checkout
Core Bore Firestop and Seal System for Concrete Floors

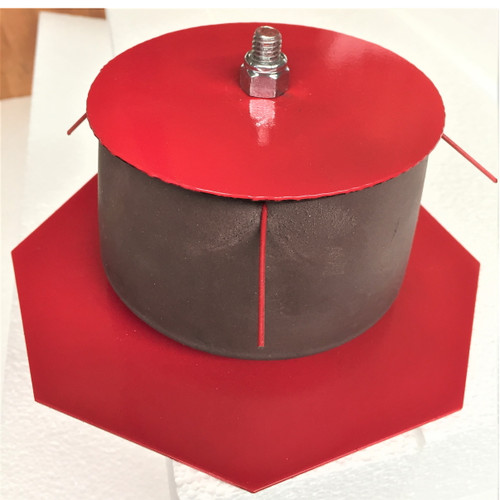

Use our UNIQUE Core Bore Seal (CBS) Firestop System to cover, seal and firestop empty core holes in concrete slabs or walls during construction and post-construction. The Core Bore Seal Firestop System is completely removable if the abandoned core should need to be reclaimed sometime in the future. Made with a heavy steel plate (0.60) and an intumescent firestop muffin (plug), in the event of a fire, the plug expands, filling the core hole and protecting the building and its occupants according to the fire rating of the barrier.
Existing Construction
In existing construction, these core holes are often abandoned when sleeves or conduits in a concrete floor or fire-rated concrete barrier are removed. Prior to the invention of this innovative UNIQUE product, abandoned core holes were often left unsealed, destroying the integrity of the fire-rated barrier. Sometimes they were filled with concrete making the core hole useless in the future. Our Core Bore Firestop System solves both problems, restoring the fire-rated wall to its initial rating while still preserving the function of the core hole in the event it will be used again.
New Construction
In new construction, sometimes extra core holes are drilled, only to find out they won’t be needed for the foreseeable future. Our Core Bore Firestop System effectively seals and firestops empty core holes in both concrete floors and vertical concrete walls, especially those that may be used in the future, but not necessarily immediately. Unlike other methods that seal the core hole permanently, the Core Bore Firestop is completely removable!
Easy to Install with NO TOOLS!
Our Core Bore Firestop System saves installation time and money while meeting all building codes. Made of high-grade steel plate (0.60) and an intumescent firestop muffin (plug), it comes with everything needed to install it except the Silicone Firestop Sealant, available on this website.
For concrete floor installation, the Core Bore Seal is inserted into the core hole with a 3/8 to 1/2 inch bead of Silicone Firestop Sealant under the top plate. This will smoke seal the Core Bore Seal to the slab. The top plate can be covered by carpet. The system may be removed when the core hole is again needed.
For a Core in a vertical concrete wall, please call the factory to order a slightly modified product specifically for vertical walls. Prongs! We want to ensure your success!
Available in nine sizes: 1.5″, 2.0″, 2.5″, 3.0″, 3.5″, 4.0″, 4.5″, 5.0″, 5.5″. Order the size Core Bore Firestop System that is closest to your core width measurement without going over.
UL Testing and Listings
We just recently completed UL testing on the UNIQUE Core Bore Seal using Silicone Firestop Sealant at the STI burn lab and we passed. STI was very gracious to help us test this UNIQUE device. Our CBS Firestop System was UL tested using Silicone Firestop Sealant (STI brand sealant and available on this website) and they must be used together for UL compliance and to obtain AHJ acceptance. The UL System for the UNIQUE Core Bore Seal Firestop System is now available on this website. See UL System for F, T, L, and W ratings.
IMPORTANT Note About UL Compliance: Our Core Bore Seal Firestop System was UL tested using Silicone Firestop Sealant (STI brand sealant available on this website) and they must be used together for UL compliance and to obtain AHJ acceptance.
We guarantee AHJ acceptance. Your System is approved when the Inspector says it is! Use our email Inspector Form for pre approval by your AHJ.
