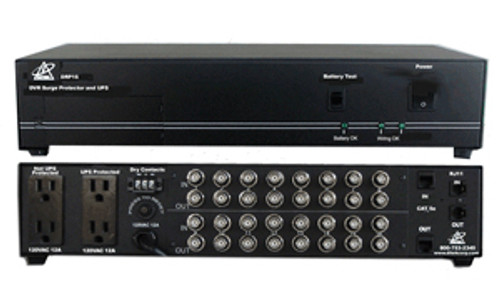

DTK-DRP16 Digital Video Recorder Surge Protector and UPS

Keep your CCTV surveillance system up and running with DITEK'S revolutionary DRP16 Series—complete DVR surge protector and UPS in one high-performance unit. Whatever your need, the DRP16 can protect any CCTV connection.

Not only do you get state-of-the-art protection against power surges and spikes, but you also get up to 20 minutes of back-up power in case of electrical outage.

Dry contacts notify you immediately when you have lost power and the battery backup has been activated to keep your system operating.

This single unit protects up to 16 video feeds, four power outputs, one RJ45 network port and one RJ11 telco jack with the best video signal clamping in the industry.

Application: CCTV and DVR Systems

• Protects all power, data, and video connections
• Up to 20 minutes of backup power
• Tightest video signal protection available with no signal degradation
• Rack mount kit available
• UL Listed

Status Monitoring

• Battery test switch
• LED indicators for battery, electrical wiring and surge protection status

Battery Backup and Power Protection

• Two surge protected UPS outlets for DVR and camera power supply
• Two surge-only outlets for monitors and other equipment
• Dry relay contacts for remote reporting of AC power status
• Field replaceable battery ensures continuous service

Network and Dial-up Protection

• Phone line surge protection for remote dialers
• Gigabit Ethernet protection
