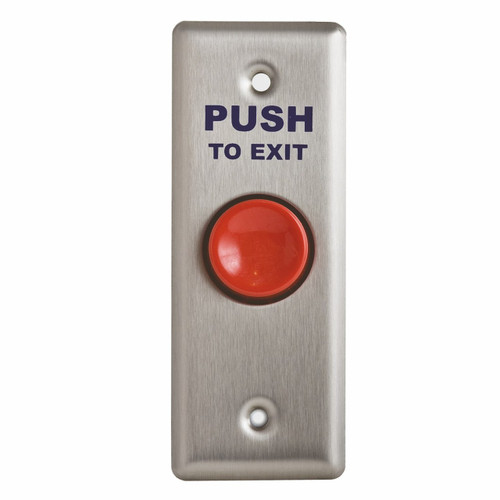

CM-250 (narrow) push switch is a light-duty, ADA-compliant door control. Designed to control electric locks & strikes, magnetic locks, automatic pedestrian & overhead doors, the switches feature a stainless steel faceplate and the assembly is designed for easy installation. The SPDT switches are rated 15 amps @ 30 VDC.
1" RED button - requires minimal actuation force
Stainless steel faceplate available in single gang or narrow jamb width
Also available in a variety of faceplate messages and logos
3yr. 'Camden Tough' warranty with '2 for 1' replacement
Specificatoins:
Voltage: 12/24 VDC
Contact Type: SPDT Form 'C'
Contact Rating: 15 Amps@30V DC
Switch Type: Momentary
Dimensions: CM-250: 1 5/8" x 4 1/2" x 1 11/32" (41mm x 114mm x 32mm)
CM-280: 2 3/4" x 4 1/2" x 1 11/32" (70mm x 114mm x 32mm)
