Emerson UPCBD8000 Multi Purpose Telephone Splice Enclosure F604058

Emerson UPCBD8000 Multi Purpose Telephone Splice Enclosure F604058

F604058 Splice Closure OutDoor Terminal 7200 Pair Galvanized Steel Housing Double Access Hinged Doors Removable Base Cover Adjustable Splice Bars 3-Point Locking Mechanism Built-In Pad Mounting RDUP Accepted Bonding/Grounding Gray-Green F604058

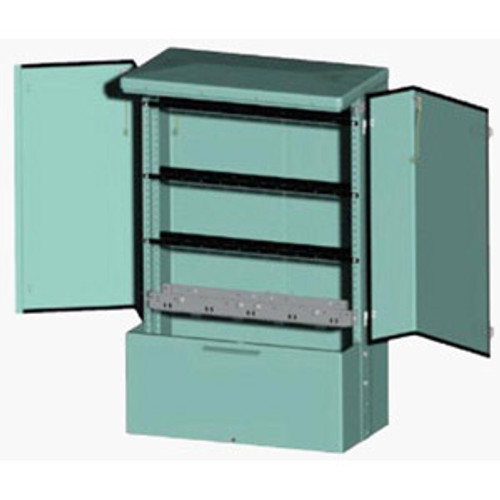

The UPCBD8000 is a round-cornered rectangular-design copper/fiber splice or equipment enclosure accepted for use by the RUS. The UPCBD8000 may be used for high pair-count splices, cross-connect interface, fiber equipment, loop treatment electronics, and combined connection applications. This unit includes adjustable splice bars, two bonding and grounding bars, and pad-mounting hardware. Brackets for pad-mounting are built into the front and the rear bases. Although pad-mounting is recommended, stake-mounting holes are also provided.

The UPCBD8000 serves as an RUS accepted above-ground housing for large PIC cable splices, load coils, loop treatment devices, cross-connects, and combined connection applications. The UPCBD8000 closure can also be used to house most fiber splice enclosures. By removing the metal splice bars, ample space for fiber slack storage is available.

UPCBD8000 PDF Data Sheet
