Honeywell Alarm System Kit Vista 20P 6150RF Wave2 Battery

Honeywell Alarm System Kit Vista 20P 6150RF Wave2 Battery

Kit Includes:

• 1 - Honeywell VISTA®20P Control Panel - 357-VISTA20P

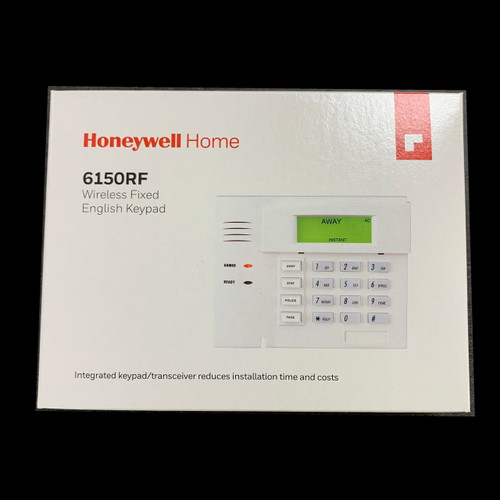

• 1 - Honeywell 6150RF Fixed Language Integrated Keypad/Transceiver - 357-6150RF
• 1 - 12V4.0AH LEAD ACID Rechargeable Battery - NT-12/4
• 1 - Honeywell WAVE2 Two-tone Siren - 357-WAVE2

Honeywell VISTA®20P Control Panel - 357-VISTA20P

The high capacity, feature-rich VISTA-20P lets you deliver more value to your customers on each and every sale with up to 48 zones of protection, Internet uploading/downloading, graphic keypad support and dual partitions. VISTA-20P gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. In addition, the VISTA-20P, used with an AlarmNet® Internet or 4G communicator can be installed in premises without TELCO lines. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-20P an ideal choice for higher end installations.

Features:

• IP alarm reporting and uploading/ downloading capability for Internet and Intranet use via iGSMV4G, 7845i-ENT, GSMV4G or GSMX4G
• Supports four graphic touchscreen keypads
• Wireless keys can be programmed without using zones
• Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
• 40 hardwire expansion zones
• 40 wireless expansion zones
• Two low current on-board trigger outputs
• 100 Event Log viewable at system keypads with time/date stamp
• 48 system user codes assignable to either partition
• Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
• Two independent partitions plus a common partition
• Global Arming from any system keypad
• Go to function to view or operate one partition from the other
• Separate partition account numbers
• 16 output devices
• Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
• Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
• Supports four-wire and up to 16 two-wire smokes
• Works with Sentrol CleanMe™ maintenance signal
• Multiple actions on output devices depending on system state
• Turns lights off when system arms
• Turns the same light on when system disarms
• Flashes same lights when system is in alarm
• Built-in phone line cut monitor with programmable delay and annunciation options
• Display on system keypads
• Trigger local sounders
• Trigger system bell

Security Dealer Features

• Automatic System Load Shed
• During extended AC power fail, the system battery will be disconnected to prevent irreversible battery failure. Reduces service calls to replace batteries.
• Dynamic Signaling
• Reduces redundant reporting to the central station when multiple reporting methods are used; i.e. digital dialer and AlarmNet radio

Valuable End-User Features

• Viewable on system keypads:
• Exit countdown
• Time and date display*
• Event log*
• Auto keypad backlighting on entry
• Keyswitch arming
• Programmable macro buttons and single-button arming
• Supports a variety of wireless remote controls for single-button operation
• User Scheduling
• Latchkey reports to pagers
• Auto arm/disarm
• “User access” time windows
• VIP Module allows system control from any touchtone phone
• Chime by zone
