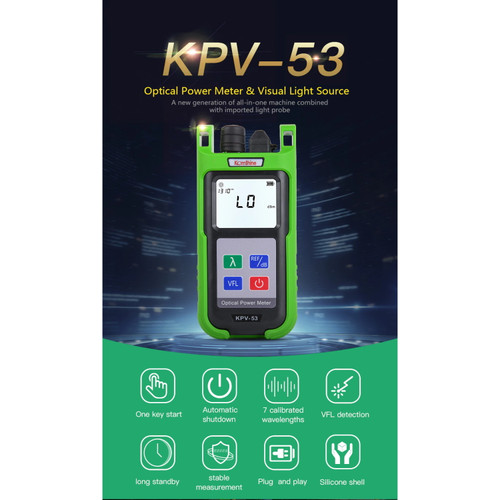

KPV-53 Optical Power Meter with Built-in Visual Fault Locator

 KPV-53 Optical Power Meter with Built-in Visual Fault Locator

Features:
1. Integrated optical power meter and visual fault locator.
2. Optical power meter measures dBm, dB and uW in the following wavelength ranges: 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
3. The visual fault locator uses CW mode and Modulation mode to help detect optical cables up to 10 km long.
4. Measurement range of optical power meter is 800‑1700nm, and the InGaAs probe is used with high measurement accuracy.

Specification:
Item Type: Optical Power Meter
Material: ABS

Optical Power Meter:
Wavelength Range: 800-1700nm
Probe Type: InGaAs
Power Measurement Range: -70-+10
Uncertainty: ±5%
Fiber Type:SM MM
Standard Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Connector: FC/SC
Display Resolution: Linear Display: 0.1%, Logarithmic Display: 0.01dBm

Red Light Source:
Working Wavelength: 650nm±10nm
Light Source: FP-LD
Output Power: 1mW, 10mW, 20mW
Connector: 2.5mFC/PC Universal Adapter
Working Mode: CW Continuous Light or Modulated Light
Modulation Frequency: 2Hz
Working Temperature: -20℃ - +75℃
Storage Temperature: -40℃ - +85℃
Automatic Light Machine Time: 10Min
Battery Continuous Working Time: 100H (Backlight Off State)
Power Supply: 3 x AA Battery (Battery Not Included)
