New Tech 356-7001 Indoor Outdoor Weather and Waterproof Rated IP65 Stainless Steel

New Tech 356-7001 Indoor Outdoor Weather and Waterproof Rated IP65 Stainless Steel

Door Bell Type Round Request to Exit Button Standard Size for Door Access Control With LED Light NC COM and NO Output

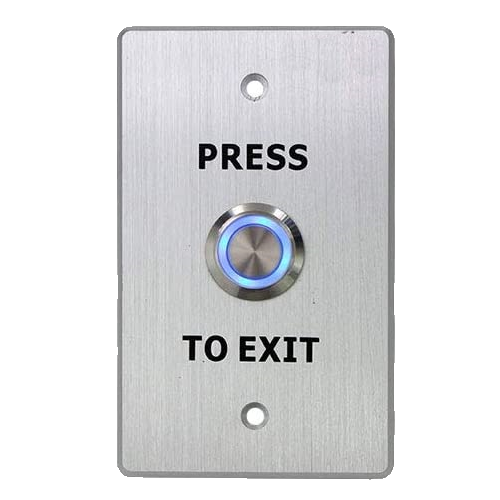

The New Tech 356-7001 is a standard sized doorbell type push to exit button. Being a popular choice for many projects, it can be used in residential and commerical areas for all different types of applications. With the illuminated blue LED back light and stainless steel plate, it gives the exit button that much more of a presence and professional look. This exit button is for indoor use and can be used for multiple access control applications and DIY projects.

Attention: This exit button is meant for indoor and outdoor use.

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.

We recommend that at the time of install, you set everything up on a work bench to make sure everything is ready to go before. These products and their user-friendly design will have you secured and protected very soon!

• Contact Rating: 3A/125-250VAC
• Output Contact: NC, COM, NO
• Waterproof Grade: IP65
• Power: 12VDC or 24VDC
• Button: Stainless Steel
• Button Installation Diameter: 19mm (0.74in.)
• Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
• Suitable for: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.12kg
• Dimension Of Plate: 115L × 70W × 40H mm – 4.52L x 2.75W x 1.57H in. LED Color Indicator: Blue
