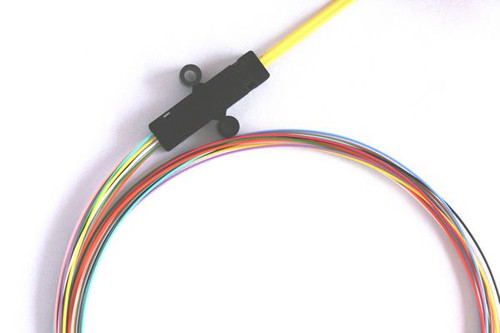

Outside Plant Buffer Tube Fan-out Kit for Loose Tube Fiber 6 Fiber 25"

Corning Cable Systems Indoor and Outdoor Buffer Tube Fan-Out Kits provide the ultimate solution for the field installation of connectors for the termination of 6- and 12-fiber buffer tubes. Ideal for indoor or outdoor crossconnects, these kits provide the most compact, easy-to install fan-out solution. The compact design requires no additional hardware or space than that required for terminating tight-buffered cables. The 900 ?m fan-out assembly is color coded to match the fiber color scheme and is available in 6- or 12-fiber units in lengths of 25 or 47 in. These different lengths provide the installer the flexibility needed for a variety of hardware options.

Indoor Version
Indoor buffer tube fan-out kits are available in 6 and 12 fiber counts and in furcation tubing lengths of 25 and 47 in. Indoor kits are recommended in environments within a temperature range of 0° to +70°C (+32° to +158°F). In situations where colder temperatures are possible, the outdoor kit should be used.

Outdoor Version
Outdoor kits include additional elements that compensate for wider temperature fluctuations. Different materials and the use of epoxy in the assembly allow this kit to be used over a wider temperature range. The outdoor version is recommended for use in environments within a temperature range of -40° to +70°C (-40° to +158°F).
