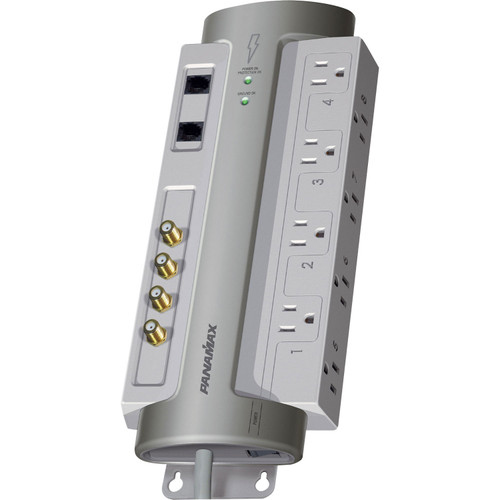

PM8-AV Power Conditioner Eliminates Voltage Irregularities Protects your AV System
Please call for dealer pricing
Improves Picture and Sound Quality
The PM8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Surge Protection
Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Safety
Engineered and built to meet the latest UL Safety requirements (UL 1449 3rd Edition)
Features:
- Cable/Sat Protection
- Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.
- Telephone Line Protection
- Protects equipment from electrical surges that travel over telephone lines.
- 8 Outlets
- Eight (8) filtered and surge protected outlets.
- Surge Protection
- Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
- Hi Def Ready
- Hi-Def Designed to work with your High Definition system.
Specifications:
Voltage Protection: Rating (UL 1449 3rd Edition, 3,000A): 500V Thermal Fusing: Yes Single Pulse Energy Dissipation: 1125 Joules Response Time: < 1 ns Peak Impulse Current: 52,000 Amps
Telco Protection: Wires Protected: 1 Line (3, 4) Suppression Modes: Metallic & Longitudinal Fuseless / Auto-reseting: Yes Connectors: RJ-11 Clamping Level: 260V Capacitance: 30pf (approx.)
Universal Coaxial: Protection Shielded: Yes Insertion Loss: < 0.5 dB Frequency Range: OMHz – 2.2 GHz Connections: Female “F”, Gold Plated Clamping Level: 75V Bidirectional: Yes
$100,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY LIFETIME LIMITED PRODUCT WARRANTY
Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit. WARRANTY LIMITATION FOR INTERNET PURCHASERS:
Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
