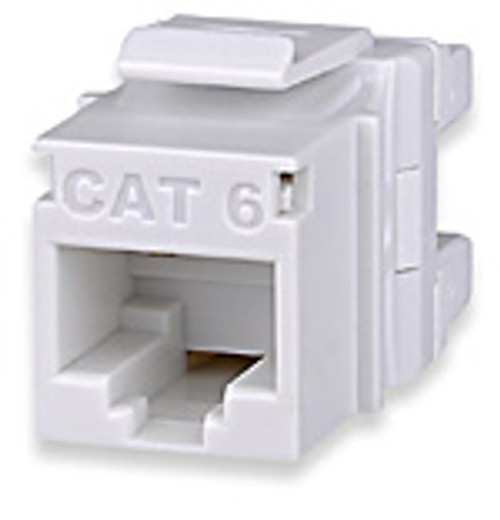

Signamax MT-Series Category 6 High Density Keystone Jack

Signamax MT-Series Category 6 High Density Keystone Jack

Category 6 Keystone Jacks have been designed to meet the need for today's high-bandwidth applications. Category 6 connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6 requirements.

Jacks support both T568A and T568B wiring schemes using an easy-to-read color-code wiring label and can be terminated using standard single-position 110 tools. The connectors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Rear 110-type contacts are designed to provide improved conductor retention and ease of termination.

Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool.

Jacks feature the ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks from dust and other contaminants. Jacks are available in nine colors and are supplied with two color-matched icon tabs and dust covers for voice or data identification.

• Guaranteed to meet or exceed TIA-568-C.2 component performance
• Supports TIA-568-C.2 category 6 100-meter channel performance
• Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port
• 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels
• Terminated with standard single-position 110 or Signamax four-pair termination tools
• Rated for at least 750 plug insertions providing for the highest level of system reliability
• Rear 110 type contacts provide improved wire retention and ease of termination
• Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
• T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility
• Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other ontaminants
