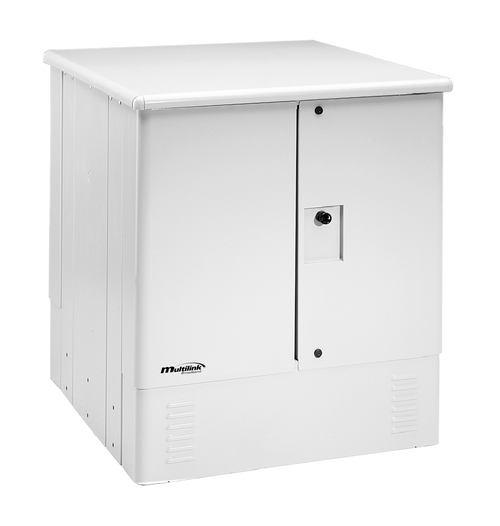

An above-ground housing to shelter amplifiers, splice enclosures, nodes, and provide ample space for slack storage in a secured environment. The 030-127-10 features fiber slack storage hooks and 2 node rods.
Pedestal consists of one piece continuous frame made up of galvanealed steel and a top, four doors and skirts made up of galvanealed steel.
Pedestal parts are coated with 2-3 mils of polyester powder coat after undergoing 5 pretreatment processes.
All four doors and top are detachable using stainless steel slide off hinges (8).
Front doors are locked with a rod-roller system including a flush mounted 1 piece lock.
All door ventilation louvers are backed with fiberglass bug screens.
Convection air flow system in place to properly ventilate cabinet.
Pedestal can either be concrete pad mounted, stake mounted, or vault mounted.
All vertical seams are sealed with synthetic rubber seal, entire cabinet is rain tight.
