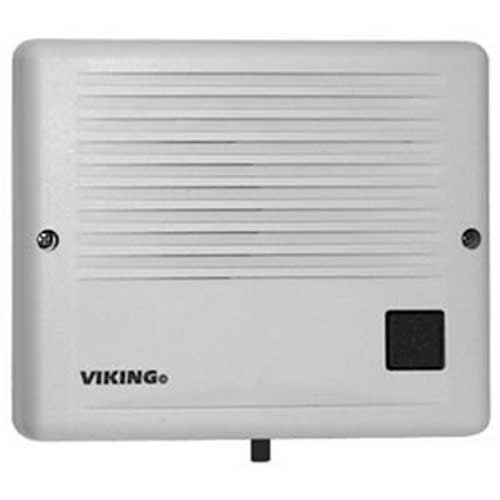

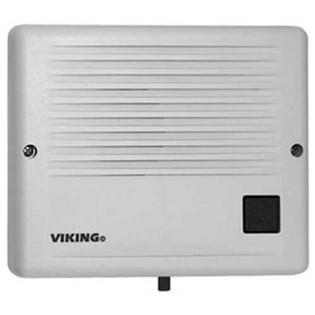

SR-1 Viking Electronics Viking Single Line Loud Ringer.
- The SR-1 will generate loud ringing from an analog ringing line or from a dry contact closure. There are 4 different ringing sounds to choose from. Loudness is easily adjusted with a volume control knob and test button.
- The SR-1's unique sounding ring is useful for employees that often work away from their desks, allowing them to instantly recognize when their phone is ringing. A second set of contact inputs will trigger a door chime (doorbell) sound. This can be used to notify that a door has opened or used as a door bell or push for assistance button.
- The SR-1 is easy to install and comes complete with a power supply and connections for an optional external speaker.
- Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided.
- Dimensions: 140mm x 115mm x 40mm (5.5'' x 4.5'' x 1.6'')
- Environmental: 0 degC to 32 degC (32 degF to 90 degF) with 5% to 95% non-condensing humidity.
- Maximum Sound Pressure: 90 db @ 1 meter (nominal) 105 db with added 25AE Paging Horn.
- Connections: 6 cage clamp screw terminals.
