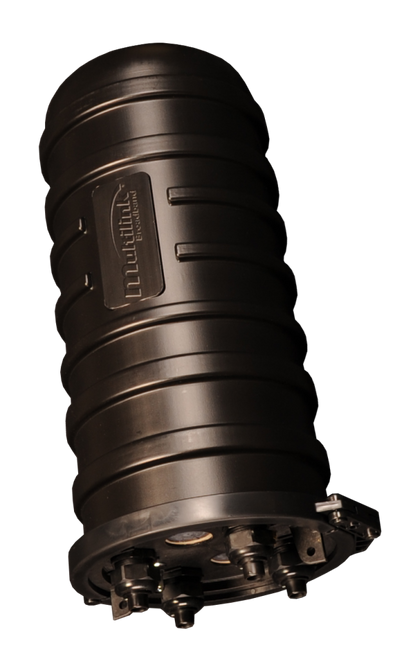

Starfighter 4000-D Outdoor Dome Splice Closure

Starfighter 4000-D Outdoor Dome Splice Closure

The Starfighter 4000-D Dome Splice Closure is designed for above or below grade applications and supports up to 6 or more cable entries. The closure has a unique gasketed Split End Plate system that allows for midaccessing cable up to 1.125” in diameter. Branch or lateral cables can be added to any one of four compression seal entry ports. Multiple cables (up to 6) can also be installed utilizing multi-port grommets available for the closure. The closure requires no special tools, adhesives, or mastics for installation. Integrated slack storage and hinged trays allow for maximum storage and access of fiber and fiber bundles. Splice capacity of 192 single fusion splices using the 4048-SSTP tray or 288 single fusion splices using the 4072-SSTP tray.

• Completely sealed with compression seal technology.
• Ease in installation requiring no special tools.
• GR-771 and CATV industry compliant.
• Mid-access design for installation over existing cables without disturbing a working cable.
• Can be used for above or below grade applications.
• Capacity for 8 splice trays.
• RUS Listed.
• Includes 1 x 4072-SSTP 36 Count Splice Tray

4000-D PDF Data Specification  4000-D Installation Instructions
