Tempo Fusion Splicer and Fiber Cleaver Kit 2

Greenlee Fusion Splicer  and FIber Cleaver Kit 2
Complete Kit

Includes: Optical Fusion Splicer and Optical Fiber Cleaver plus Fiber Optic Stripper and an Extra Battery

• Designed to meet virtually any FTTx application
• Features Core Alignment to minimize splice losses and rework time.
• With dual cameras, 240X magnification, and a large 5.7"color LCD, technicians can analyze cleaved fiber optic cable faster than ever.
• Up to 5,000 splice records can be stored, and the long-life, quick charged battery keeps on working even in remote locations.
• Optional Accessories and Replacement Parts
  • 910FS-ELEC Replacement Electrodes
  • 910FS-PS Replacement Power Supply
  • 910FS-250 250 micron Adapter (Pair)
  • 910FS-900 900 micron Adapter (Pair)
  • 910FS-SOC-SC Splice On Connector Adapter (SC and LC)
  • 910FS-BATT Battery (910FS)
•        Covered by a three year warranty

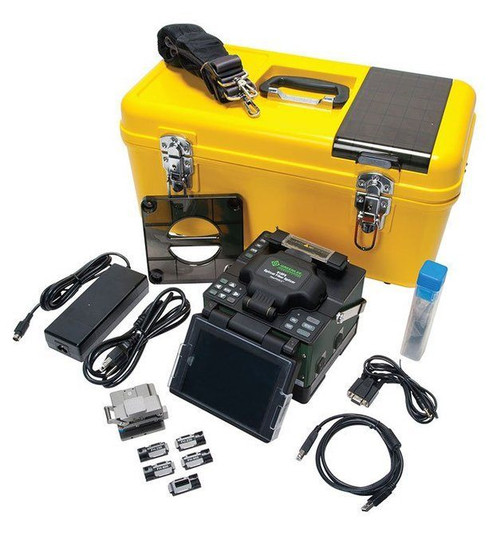

All 910FS kits include:

• Yellow carrying case
• Work platform adapter
• Tweezers
• Extra set of electrodes
• RS232 cable
• USB cable
• 250um adapters (pair)
• 900um adapters (pair)
• SC/LC SOC Adapter
• Allen key
• Protective LCD cover
• Power supply
• Line cord
• Carrying strap
• Cooling tray

Features:

• Alignment : CORE
• Alignment Method : CORE
• Applicable Fibers : SM (G.652), MM (G.651), DS (G.653), NNZDS (G.655), BIF (G.657)
• Cladding Diameter : 80 TO 150um
• Cleaved Length : 10mm
• Connectivity : RS-232, USB
• Display : 5.7" Color, Turn-over LCD
• Display Magnification : 240X
• Environmental Conditions : 14°F to 122°F (-10°C to +50°C), HUMIDITY 0 TO 95%, PRESSURE 0 TO 16, 404' (0 TO 5000M) ABOVE SEA LEVEL
• Extra Monitor Connection : NO
• Fiber Count : 1
• Model : 910FS
• Power Supply : 100 to 240VAC, Li ION Battery
• Protection Sleeve Length : 60mm, 40mm, MICRO SLEEVES
• Splice Loss : 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
• Splice Connector : SC AND LC
• Splice Time : 9 SECONDS
• Storage of Splice Results : 5000
• Tension Test : 2N
• Tube Heating Time : 36 SECONDS
