TOA F-2322CU2 Full Range Flush Mount Ceiling Speaker UL2043 Plenum

TOA F-2322CU2 Full Range Flush Mount Ceiling Speaker UL2043 Plenum

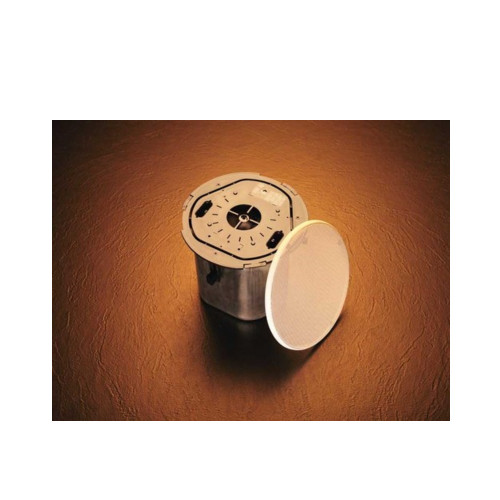

The F-2322 is a flush-mounted ceiling speaker that offers wide frequency range and high quality sound output. The F-2322C employs a full-range speaker element. Use of the supplied and optional mounting hardware permits versatile mounting to match a wide range of
applications and installation locations.

Its bass-reflex speaker system designed to provide a wide frequency range and high power handling capability. Its wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker is provided with both low- and high-impedance operating capability, it can be used in many different applications. Front panel-mounted input selector switch permits easy verification and change of current impedance settings, even after installation. It can be quickly and accurately mounted to ceilings and walls. The rotating front grille can be installed quickly and conveniently. It has an attractive exterior design specially created by an interior designer blends naturally with any architectural space, enhancing the immediate area's sense of harmony. Optional mounting hardware permits exposed installation or installation in weak ceiling panels.

• Excellent Sound Quality
• Wide-Dispersion, Smooth Off-Axis Coverage
• Fast And Easy Installation
• UL-Listed And Compliant Models UL2043
• Built-In 25/70.7 V Multi-Tap Transformer
• Low Impedance Mode (8/16 Ohms)
• Convenient Power Tap Selector On Front Baffle
• Integral Metal Back-Can And Safety Cable
• Low-Profile, Paintable Grille
• Overload Protection Circuitry
• Mounting Hardware Included
• Ported bass-reflex design
• 5 full-range driver
• Frequency Response: 70 to 20k Hz
• Bass reflex type enclosure
• Competitive Pricing
• Five Year Warranty
