Ubiquiti Nanostation M5 5GHz Hi Power 2x2 MIMO AirMax Station

Ubiquiti NanoStationM5: 5 GHz Hi Power 2x2 MIMO AirMax TDMA Station NSM5

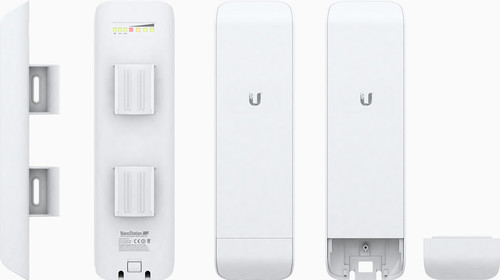

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mpbs real outdoor throughput and up to 15km+ range.
Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

Next Gen Antenna Design:
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.

Dual Ethernet Connectivity:
Secondary ethernet port with software enabled POE output for seamless IP Video integration.

Intelligent POE design:
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

AirOS V: Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Features:

• High Performance MIMO 2x2 TDMA Architecture
• Extended Outdoor Range
• Ubiquiti AirOS software
• External status LEDs
• External reset button
• Pole, Wall or Window mount options

Specification:

• 26 dBm / 400mW +/- 2dB high power 802.11b/g Atheros AR2316 SOC
• MIPS 24KC, 400MHz
• 32MB SDRAM, 8MB Flash
• 2 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface
• FCC Part 15.247, IC RS210, CE
• Rx Sensitivity: -97dBm +/-2dB
• Integrated 2x2 MIMO Antenna:
  • Frequency Range: 2.32-2.55 GHz
  • Gain: 10.4-11.2 dBi
  • Polarization: Dual linear
  • H-pol Beamwidth: 55°
  • V-pol Beamwidth: 53°
  • Elevation Beamwidth: 27°
  • Maximum Power Consumption: 8 Watts
• Dimensions: 26.4 cm x 8 cm x 3 cm
• Weight: 0.4 kg
• Enclosure: Outdoor UV Stabilized Plastic
• Pole Mounting Kit included
• Power Supply: 24V, 0.5A surge portection integrated POE adapter included
• Power Method: Passive PoE (pairs 4,5+; 7.8 return)
• Operating Temp: -30°C to +80°C
• Shock and Vibration: ETSI300-019-1.4
• RoHS Compliant: Yes
