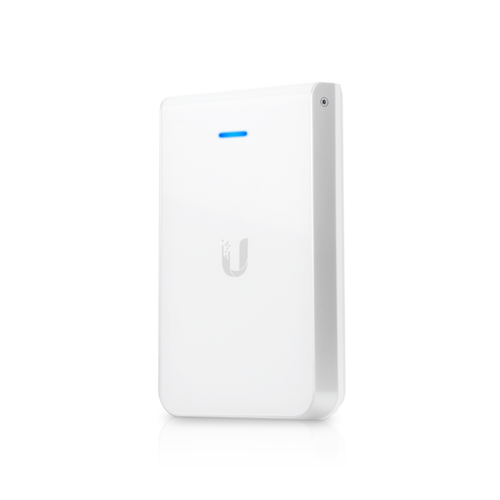

Ubiquiti UAP-IW-HD UniFi In Wall HD Access Point

Ubiquiti UAP-IW-HD UniFi In Wall HD Access Point

802.11ac 4x4 MIMO access point with 4-port Gigabit Ethernet switch for high-density environments. Fits into wall outlet.

The sleek and elegant UniFi In-Wall HD AP transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi Access Point with 4x4 MIMO technology.

Easy Mounting The back plate offers multiple mounting holes for use with a variety of 1-gang electrical wall boxes.

LED The unique provisioning LED provides administrator location tracking and alerts for each device.

Secondary Gigabit Ethernet Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.

Superior Processing Power The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) Standard The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).

The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Features:

• 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
• 802.3af for base functionality. 802.3at required if using PoE passthrough
• 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
