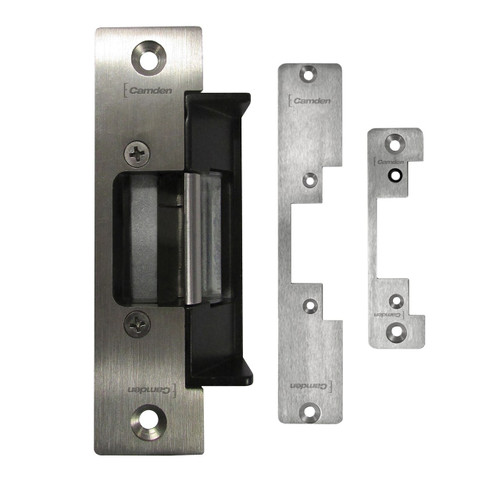

Camden's new CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body..
Centerline latch entry for cylindrical locksets, 1/2" to 5/8" latch projection
Selectable 12/24V, AC/DC
Selectable fail safe/fail secure operation
Horizontal adjustibility of strike body
3 stainless steel faceplates included: ANSI square, ANSI round and wood door frame
Low profile strike body
5 year warranty
Specifications:
Voltage: 12/24V, AC/DC
Current Draw: 300mA @ 12VDC 150mA @ 24VDC
Static Strength: 1000lbs.
Dynamic Strength: 50 Ft. Lbs.
Endurance: 700,000 cycles
Mode: Selectable fail safe fail secure
Operation: AC - Buzz DC- Silent
Duty: Continuous
Dimensions: 3 3/8" H x 1 7/8" W x 1 1/8" D x (38mm x 28.6mm x 85.7mm)
