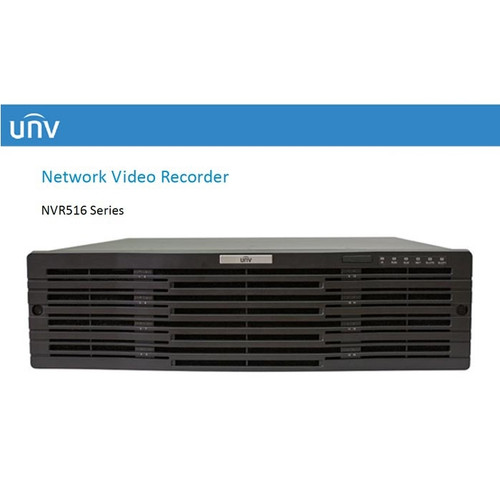

Uniview NVR516-64 64 Channel NVR 16 HDD 10TB 4K HDMI

Write a Review

Uniview

Uniview NVR516-64 64 Channel NVR 16 HDD 10TB 4K HDMI

Rating Required

Name

Email Required

Review Subject Required

Comments Required

Call for Installer Pricing 800-822-2604

Brand: Uniview
SKU:: 061-516-64
Condition:: New

Description
Product Reviews

Uniview NVR516-64 64 Channel NVR 16 HDD 10TB 4K HDMI NDAA COMPLIANT

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Third-party IP camera supported with ONVIF conformance
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
Up to 12 Megapixels resolution recording
Support H.265/H.264 video formats
Accurate retrieval, instant playback
Redundant power supply optional
2 decoding cards optional, up to 12-ch HDMI
16 SATA HDDs, Up to 8TB for each HDD, Hot-Swap
Support RAID 0/1/5/6/10/50/60
Support 2 miniSAS Interfaces
Support 12V power output
Support P2P, UPnP, NTP, DHCP, PPPoE
Support mobile client access

Model	NVR516-64	NVR516-128
Video/Audio Input
IP Video Input	64-ch	128-ch
Two-way Audio Input	1-ch, BNC
Network
Incoming Bandwidth	384Mbps	512Mbps
Outgoing Bandwidth	384Mbps
Remote Users	128
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1： 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, BNC
Synchronous Playback	16-ch
Decoding
Compression	H.265/H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA	16 SATA interfaces
Capacity	up to 8TB for each HDD
eSATA	1 eSATA interface
miniSAS	2 miniSAS ports
Disk array
Array type	RAID 0/1/5/6/10/50/60
External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Rear panel: 4 x USB3.0
Alarm In	24-ch
Alarm Out	8-ch
Decoding Card (optional)	2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output	12V
General
Power Supply	100 ~ 240V AC
Consumption ( without HDD )	≤ 50 W
Working Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity	10% ~ 90%
Chassis	19-inch rack-mounted 3U chassis
Dimensions	131mm × 482mm ×477mm ( 5.1" × 19.0" × 18.8" )
Weight ( without HDD )	≤ 10 Kg ( 22.05 lb )
