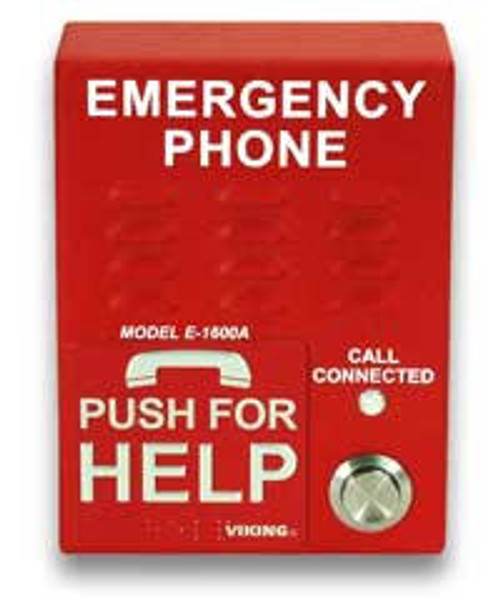

Viking E-1600A Red Emergency Telephone Auto Dialer Voice Announcer

The 1600A Series ADA Compliant Emergency Phones are designed to provide quick and reliable handsfree communication over the public switched telephone network. All 1600A Series phones meet ADA requirements for elevator/emergency telephones, and can be programmed from any Touch Tone phone. The phones can dial up to 5 programmable emergency numbers, as well as 2 central station numbers. In addition, the E- 1600-20A and E-1600-52A feature an "Info" button that will dial up to 3 non-emergency numbers.

The 1600A Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call and then initiate the call connected LED light. Alternatively, a DTMF Touch Tone code may also be delivered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile E2 memory. All units are phone line powered, requiring no batteries or external power and are compatible with common Central Station Monitoring equipment.

For outdoor or harsh environments, select 1600A Series phones are available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots, hand soldered silicon sealed connections, gel filled tip and ring connectors, as well as urethane potted circuit boards with weather sealed, field-adjustable trim pots and DIP switches for easy on-site programming. The E-1600A, E-1600-45A, E-1600-50A, E-1600-52A, and the E-1600-20A are available as an option with EWP (Enhanced Weather Protection)

The 1600A series can also be used with Central Station Monitoring equipment. All parameters, phone numbers and location numbers are stored in non-volatile E 2 memory. All units are phone line powered, requiring no batteries or external power sources.

Applications

• Elevators * Parking ramps
• Pools * ATM machines
• Area of refuge locations * LobbiesEntryways * Campus emergency stations
• Roadside emergency stations
• Stadiums * Convention centers
