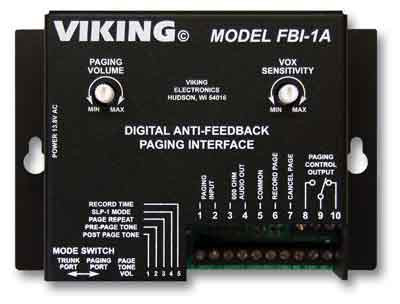

Even the best designed paging systems can experience feedback. Now you can eliminate annoying feedback over your paging speakers with VikingÂ’s model FBI-1A digital antifeedback paging interface.
The FBI-1A utilizes state of the art digital recording technology to record the “live” page from a phone system’s paging port output or unused trunk port. The FBI-1A then immediately plays back the recorded page once or twice (selectable) over the paging system.
Pages of up to 32 seconds can be stored and the FBI-1A automatically adjusts to the page length for faster processing. In addition, the FBI-1A can be programmed to provide pre-page and post-page alert tones.
High quality (80K/40K) digital message storage
High output - 2V RMS into 600 ohms
16 or 32 second record time (DIP switch selectable)
Compatible with Paging ports or Trunk ports
Activate recording from VOX detection, contact closure or loop detect (Trunk mode only)
VOX sensitivity adjustment
Cancel page feature
Selectable page repeat
Selectable pre-page alert tone
Selectable post-page alert tone
Adjustable alert tone volume
N.O./N.C. relay contacts control paging system
Record/Playback LED indicator
Compatible with virtually all paging and telephone systems
