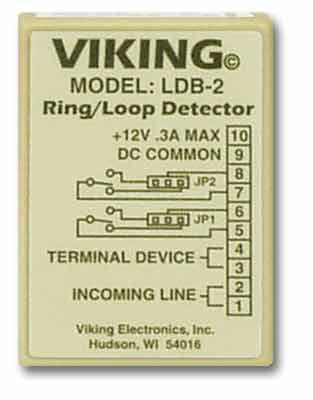

The LDB-2 Ring/Loop Detector monitors an analog phone line for ringing or an in-use condition. A built-in relay can be activated when either of these conditions are detected. This is ideal for monitoring line status or for providing a visual indication of such.
When monitoring for ring, an internal pot can be adjusted to allow the relay closure to stay on steady, or follow standard ring cadence.
The LDB-2 comes complete with a 12 VDC power adapter, and can also provide 12V DC power through its auxiliary 12V DC output terminals.
Detects ring voltage and loop connect
Screw terminal connections
Wall mountable with foam tape (included) or screws (not included)
Auxiliary 12V DC output
Adjustable time-out for relay closure
Two sets of relay contacts provided
Selectable NO (normally open) or NC (normally closed) relay contacts
