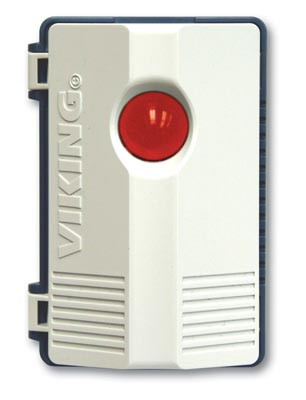

Viking VR-1B Headset Visual Light Indicator

The Viking VR-1B has a lot of functions but the best is as a visual lgiht indicator for a user on a headset.  It is really easy to set up, just plug the handset splitter into the handset jack and plug the headset adapter in one port and the VR-1B in the other.  When the user is on the headset the light will indicate that they are having a conversation and other office workers can stop interrupting them. The power supply and splitter are included.

VR-1B Installation PDF

Provide Line Status and Message Waiting Indication When used with an analog phone line, the VR-1B will provide “ring” indication, “on the phone” indication and “message waiting” indication for both “stutter dial tone” and standard message waiting voltage. In this application the VR-1B connects directly to tip and ring.

When used with electronic or digital phones, the VR-1B won’t have you guessing which phone is ringing in busy offices. The flashing LED can be seen up to 100 feet away. The VR-1B connects directly to the electronic phone’s speaker.

When used with a headset, you can end those nagging interruptions that occur when associates’ don’t realize you are on the phone because you are using a headset. The VR-1B will flash on and off indicating to everyone that you are on the phone and you are not to be disturbed. The VR-1B installs in the handset/headset jack using an included “T” adapter.

Applications

• Households
• Call centers
• Telemarketing
• Product support groups
• Office cubicles
• CO based voice messaging
• Purchasing departments
• Sales offices

Features

• Displays “ringing”, “on-the-phone” or “message waiting”
• LED visible up to 100 ft (30m)
• Power supply included
• Attractive new compact package
• Connects with a modular cord
• Special “T” adapter provided for handset applications
• Easy to install

Specifications

• Power: 120VAC / 12VDC 500mA, UL listed adapter provided
• Dimensions: 76mm x 112mm x 36mm (3.0” x 4.4” x 1.4”)
• Shipping Weight: 0.68kg (1.5lbs)
• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
• Light: 19mm (0.75”) red LED
• Visiblity: 30m (100 ft) typical Message Waiting Voltage: 90V - 125V Connections: (1) RJ11 jack,(4) cage clamp screw terminals
