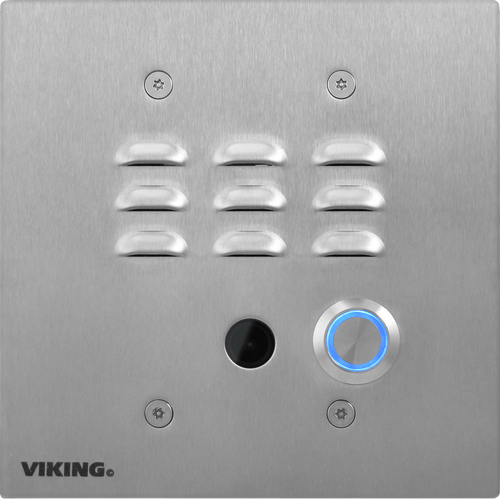

X-35-SS-EWP VIKING IP Intercom with HD Video Enhanced Weather Proofing

X-35-SS-EWP VIKING IP Intercom with HD Video Enhanced Weather Proofing

The X-35-SS IP Video Intercom is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers. The built-in IP video camera has H.264 video compression, low light sensitivity, a wide viewing angle of 126 degrees, and can output dual video streams of up to 1080p resolution.

The X-35-SS intercom can dial programmable numbers and be programmed remotely via a built-in Web UI. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers. The X-35-SS intercom will flash the blue LED during dialing and automatically light the LED when the call is answered. This intercom is PoE class 2 powered.

For outdoor installations where the unit is exposed to precipitation or condensation, use model X-35-SS-EWP. For more information on Enhanced Weather Protection (EWP), click here.

FEATURES:

• SIP compliant
• ONVIF Profile S compliant
• 126° wide viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• Gigabit Ethernet for up to 1000 Mbps
• 2 Amp relay contacts for door/gate or optional SL-2 strobe light (DOD 242)
• Blue backlit 316 stainless steel push button switch
• PoE powered (class 2, < 6.5 Watts)
• Network downloadable firmware
• T-10 Torx security screws for added security
• Handsfree operation
• Vandal resistant stainless steel prevents corrosion
• Laser etched graphics
• Cycles through backup phone numbers on busy or no-answer
• Extended temperature range of -40° F to 140° F
• Brushed stainless steel finish
• Volume adjustments for microphone and speaker
• Flush mounts in a standard double gang electrical ­­­­­­­­­box (not included)­­­­, or may be surface mounted using an optional VE-5×5 Surface Mount Box (DOD 424)
• Diagnostics for testing microphone, speaker, and relay
